vControl™ allows for multiple labware to be added at once to a storage carrier. This is done through the labware group editor.
When using storage carriers (e.g., hotel) in vControl™, multiple labware items can be generated at a time. This is accomplished using the Labware Group Editor, a menu that opens when dragging the labware to the desired carrier or by right-clicking the labware and selecting the Labware Group Editor.
Using the Labware Group Editor
-
Opening the Labware Group Editor:

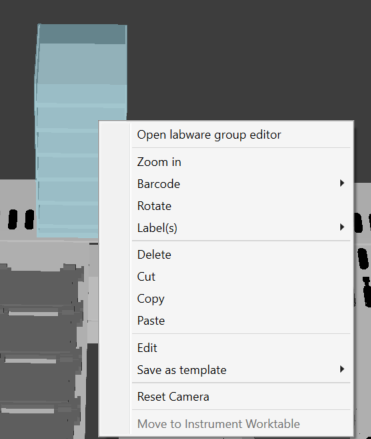

- To open the Labware Group Editor, either drag a labware item to the carrier or right-click the carrier and select the Labware Group Editor.
- To open the Labware Group Editor, either drag a labware item to the carrier or right-click the carrier and select the Labware Group Editor.
-
Understanding the Labware Group Editor:
- Once the Labware Group Editor is open, the top portion displays the positions within the carrier. Open positions are marked in blue, while positions with labware are marked with a letter (e.g., "A" for the first new group). If a position is inaccessible (such as a too-short slot at the bottom of a hotel), it will be crossed off and not selectable.
- Once the Labware Group Editor is open, the top portion displays the positions within the carrier. Open positions are marked in blue, while positions with labware are marked with a letter (e.g., "A" for the first new group). If a position is inaccessible (such as a too-short slot at the bottom of a hotel), it will be crossed off and not selectable.
-
Configuring Labware Group Settings:

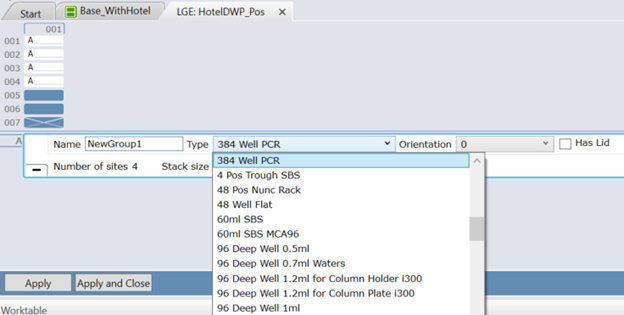

- After adding the desired amount of labware, the user can decide on a group name, type, orientation, and whether it has a lid. The type will be pre-selected if the labware is dragged and dropped on the carrier to open the menu; otherwise, the user can select from a drop-down menu. Orientation refers to the position of A1 within labware such as 96-well flat plates and should reflect the physical position on the deck. There is also a checkbox to indicate if the labware has a lid.
-
Mixing Labware Types:

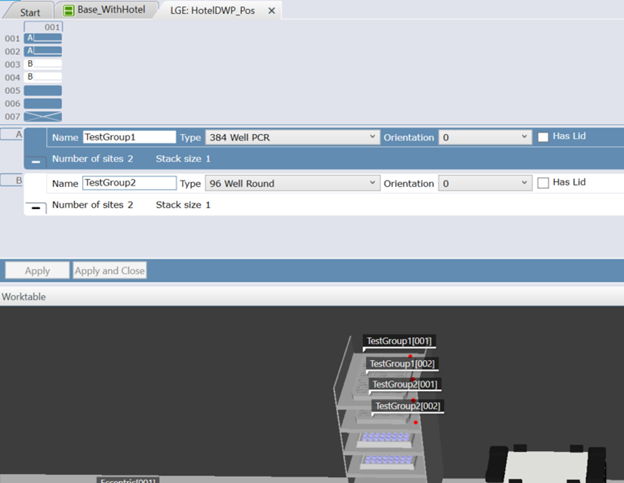

- Multiple types of labware can be placed within one carrier.
-
Saving the Selection:
- To save the selection, the user can click "Apply" or "Apply and Close." Once the user hits "Apply," the labware should be visible in the worktable GUI.
- To save the selection, the user can click "Apply" or "Apply and Close." Once the user hits "Apply," the labware should be visible in the worktable GUI.
Further help
For further help, please refer to our Helpdesk.
