The Gantt Chart shows a historical timeline of the states your jobs went through as they ran. This page will provide information on how to view the progress of your jobs in the Gantt Chart and explain how to read it.
Accessing the Gantt Chart
When you are in your LabOps view, you can access the Gantt Chart view by clicking the "Gantt" button in the main navigation bar.
Using the Gantt Chart
The Gantt Chart view lets you view a historical timeline of completed jobs in your selected lab. By default, the Gantt Chart is set to a 12-hour window before "now," represented by a red dotted line with a blue tag.
Each row represents a job and sorts the newest jobs to the top of the view.

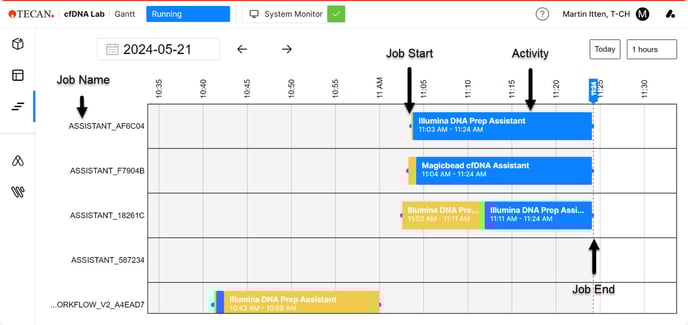

The Gantt Chart provides key information about your job, including:
- Job Name - indicated on the left at the start of the row
- Job Start and End Times - represented by the blue line that is capped with small circles
- Activity Information - represented in colored blocks to depict changes in job states
- Events Information - represented by icons to show key events that occurred
Activity
The colored blocks indicate the job activity or the state of the job during that time:
- Blue blocks indicate "RUNNING"
- Yellow blocks indicate "ASSISTANCE NEEDED"
- Red blocks indicate "ERROR"
- Dark blue blocks indicate "PAUSED"
Gaps around the blocks indicate that the job was waiting for a resource to be available before it could continue.

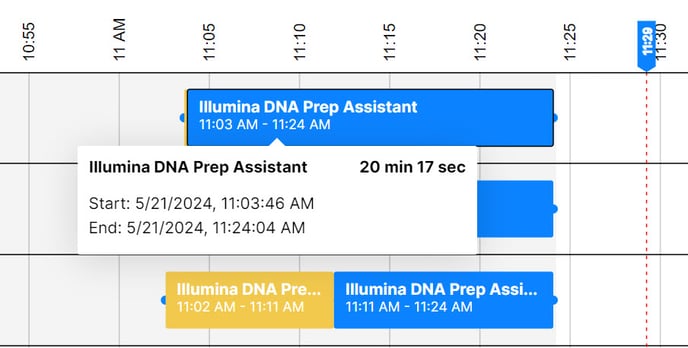

To get additional details about an activity, you can hover over the activity. When hovering over a block, you will be able to see:
- The full activity name
- The exact start and end times for that activity
- The duration of the activity
Events

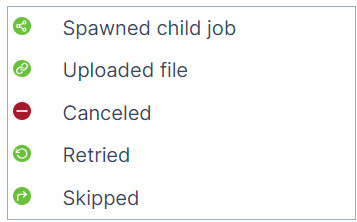

If one of the below events occurs, the corresponding icon will be added to the job's view:
Navigating the Gantt Chart
You can navigate the Gantt Chart with your mouse or using the UI.
| Mouse | Trackpad | Touch (i.e., iPad) | |
| Scroll Left/Right | Click + drag; shift + Mouse wheel | Click + drag; two-finger scroll left/right | Drag finger left/right |
| Scroll Up/Down | Click + drag; Mouse wheel | Click + drag; two fingers scroll up/down | Drag finger up/down |
| Zoom In/Out | Ctrl + Mouse wheel | Two-finger pinch in/out | Two-finger pinch in/out |
In the UI:
- Click the left and right arrows next to the date to navigate to the left and right
- Click "Today" to reset back to the default view.
Further help
For further help, please refer to our Helpdesk.
